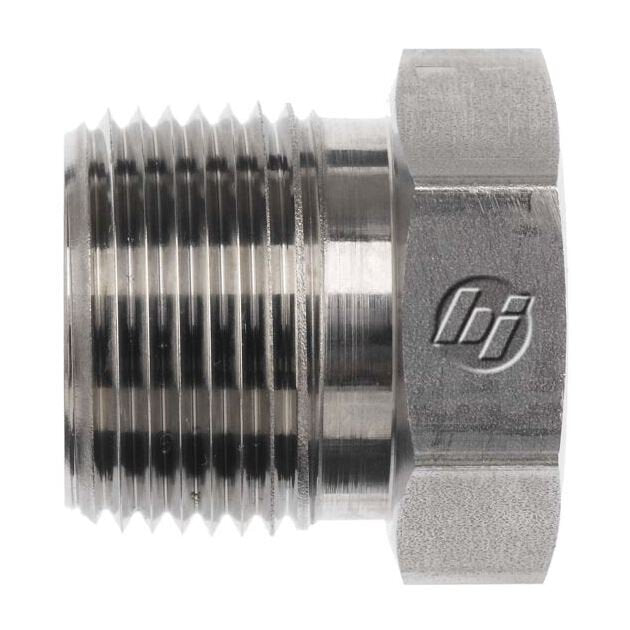

Brennan 5406-12-04-B Bushing Adapter - 12MP-04FP REDUCER BUSHING BRASS
SPECIFICATIONS
Note: Photo may not represent actual item. Refer to name and product specs for all details.
Note: Photo may not represent actual item. Refer to name and product specs for all details.
The 12MP-04FP Reducer Bushing Brass facilitates efficient connection transitions in industrial and commercial applications. Crafted from high-quality straight brass it offers durability and reliable performance.
The overall length of the bushing measures 1.170mm. It features Male NPTF (3/4-14) threading on one end compliant with SAE J476 specifications ensuring secure compatibility. The opposite end includes Female NPTF (1/4-18) threading also adhering to SAE J476 standards.
The reducer bushing is part of the 5406 series by Brennan Industries Inc. and is designed with a thread B1 drill diameter of 0.719mm and a thread B2 drill diameter of 0.281mm. This dimension precision supports seamless integration into existing systems.
With a cubic inch space of 1.481 the compact design of this component is engineered for optimal functionality without compromising on performance. This product is a reliable choice for industry-specific connectors and adapters ensuring efficient and durable connections.
Supplier Part Number:������5406-12-04-B
������
Brand
Brennan Industries Inc
|
Pack Size
1.00
|
UOM
EA
|
Supplier Part Number
5406-12-04-B
|
Product Weight
1.00 lbs
|
